HDT
Standards: HDT: ISO 75, AST M D 648 – VICAT: ISO 306, AST M D 1525
Thermoplastics materials can be characterized by different testing methods and Vicat / HDT is one of the important example of testing methods. It is based on measuring whether the temperature is within the accepted range when a standard needle tip pierce / stick 1 mm into the sample.
HDT

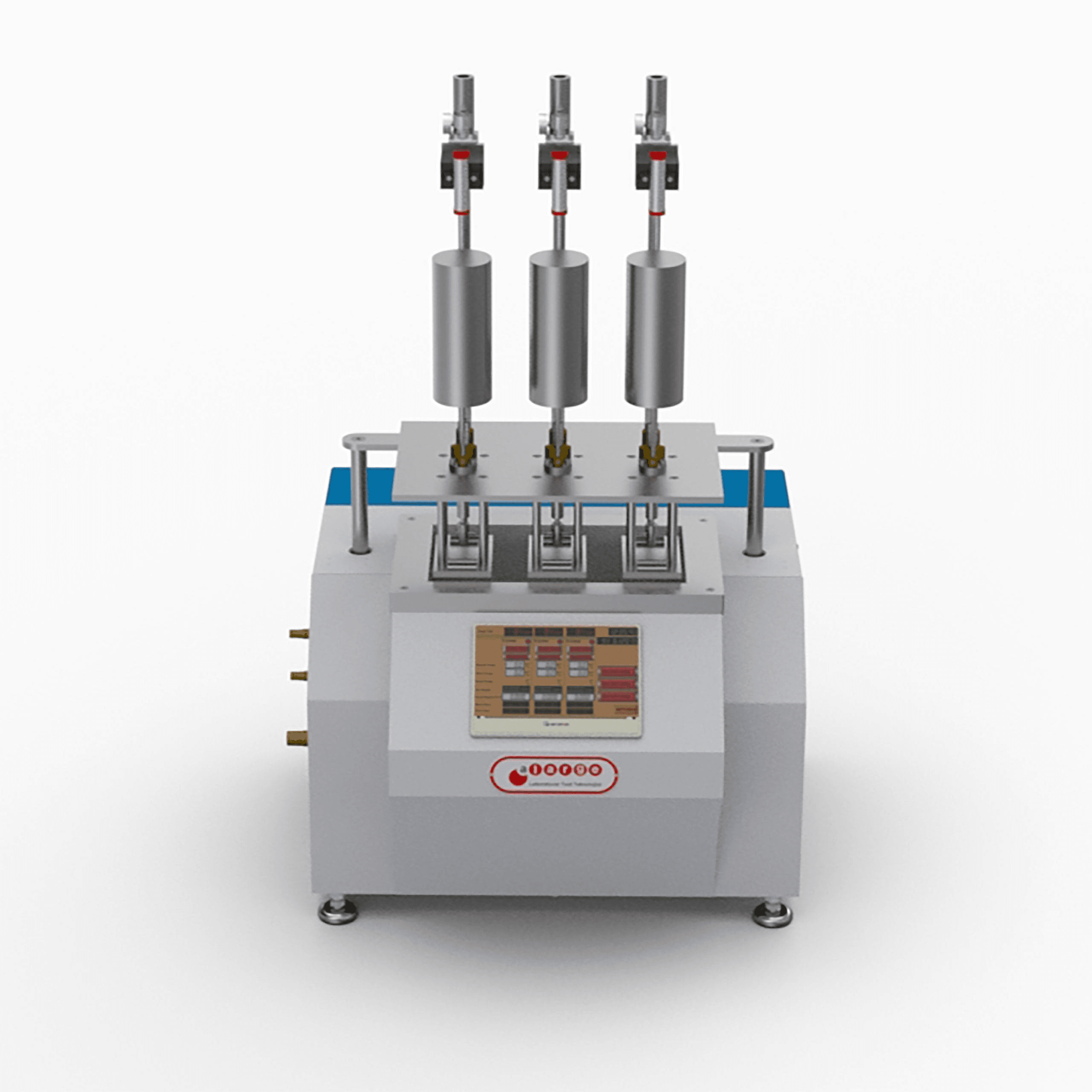

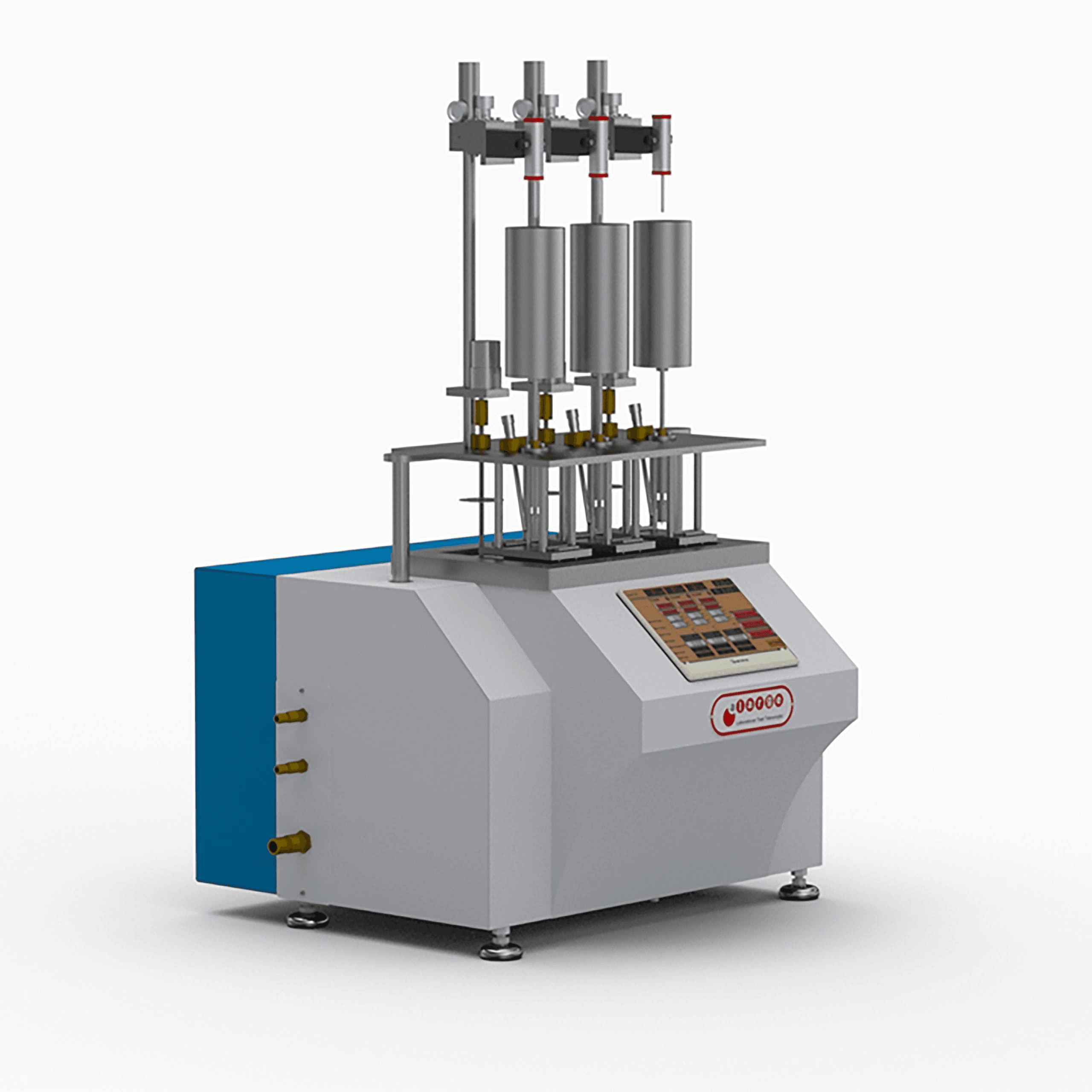

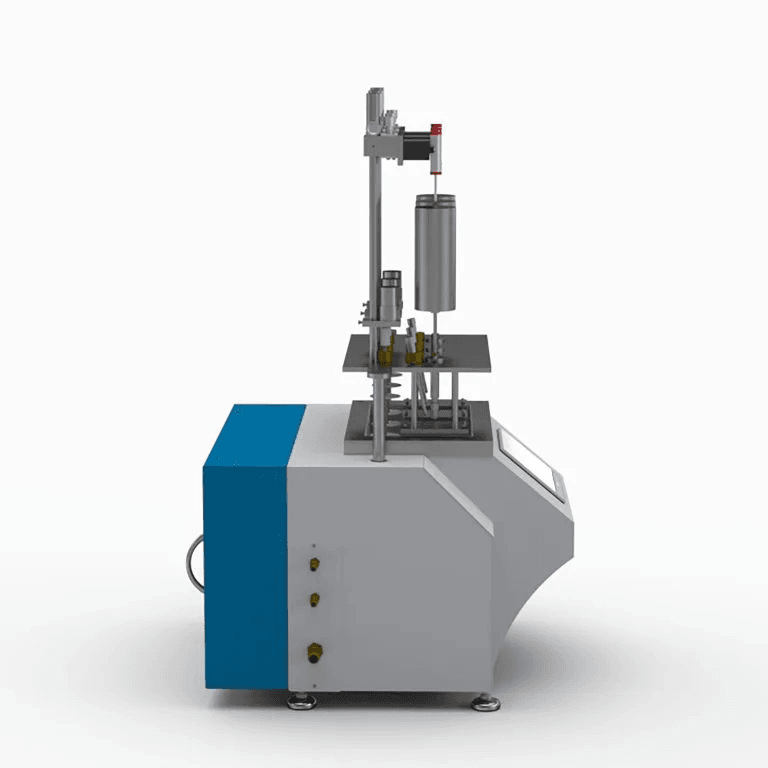

AL VIC Vicat Test Machine Standards: HDT: ISO 75, AST M D 648 – VICAT: ISO 306, AST M D 1525. Thermoplastics materials can be characterized by different testing methods and Vicat / HDT is one of the important example of testing methods. It is based on measuring whether the temperature is within the accepted range when a standard needle tip pierce / stick 1 mm into the sample. AL VIC Vicat Test Machine ability to test with high sensitivity and accuracy, Homogeneous temperature distribution User-friendly interface, High definition test, Easy to test and report
| Model | AL-VIC |
| Number of Lines | 1-3-6 |
| Number of Chamber | 1-2 |
| Temperature Range | 20-300 °C |
| Temperature Increase | Optional |
| Temperature Accuracy | 0,1 °C |
| Fast Chilling System | 50-120 °C/h |
| Measurement Resolution | 0,001 mm – 0,003 mm |
| Measurement Sensitivity | 0,1% |
| Weight | 10 N – 50 N |
| Weight Sensitivity | 0,0005 kg |
| HDT Test | Optional |
| Control | Dokunmatik Ekranlı PC / PLC |
| Software | Available |
| PC | Available |
| Standarts | ISO 75, 306, ASTM D 648, 1525 |
| Height | 1010 mm. max |
| Width | 660 mm |
| Length | 650 mm |
| Weight | 70 kg (ağırlıksız) |
| Power | 220 V |
The product is valid for 2 years starting from the delivery date.
For your technical support requests, simply contacting us is sufficient. Our expert team will strive to resolve your issue as quickly as possible through remote connection or phone support. If the problem cannot be resolved remotely, our technical team will be dispatched for on-site intervention. This ensures that your device is restored to working condition as swiftly as possible.
The installation and activation of the device you purchased are carried out in your working environment by our expert technical team. After the installation, comprehensive training is provided to your user personnel for the correct and efficient use of the device. This service ensures that you can use all the device’s functions safely and effectively.
To ensure the device operates efficiently and has a long lifespan, regular maintenance is essential. This includes tasks such as cleaning, checking connections, software updates, and calibration. It is recommended to perform maintenance at the intervals specified in the user manual. If desired, you can seek professional support from our technical service for maintenance tasks.
To ensure the device’s accuracy, calibration must be performed at regular intervals. Professional calibration is recommended every 6 months.
