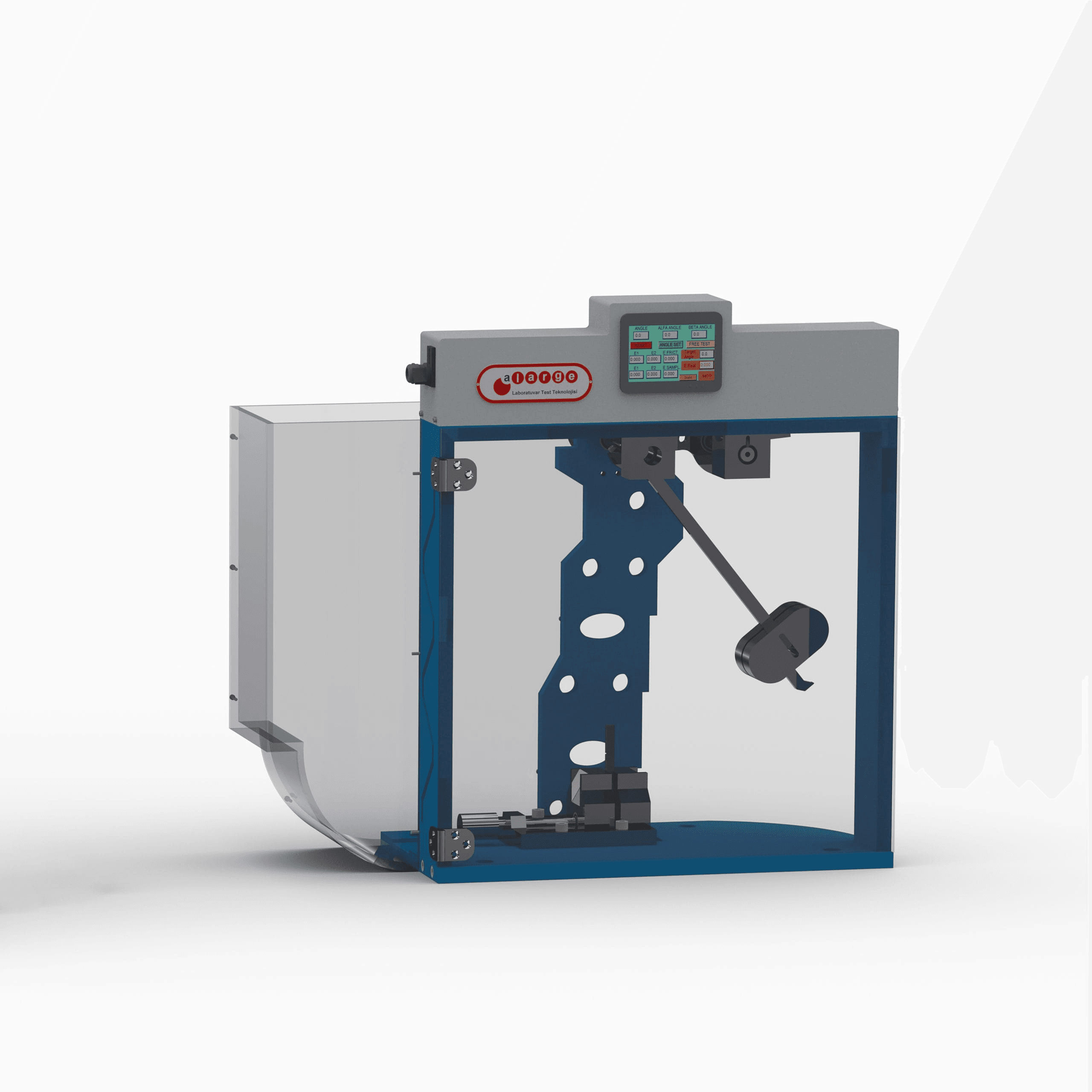

Pendulum Impact (Charpy & Izod) Testing Machine is a quality control testing device designed to evaluate the impact resistance of materials and is manufactured in compliance with ISO 179, ISO 180, ISO 8256, ASTM D 256, ASTM D 4812 standards.
Standards:
Standards :ISO 179, ISO 180, ISO 8256, ASTM D 256, ASTM D 4812

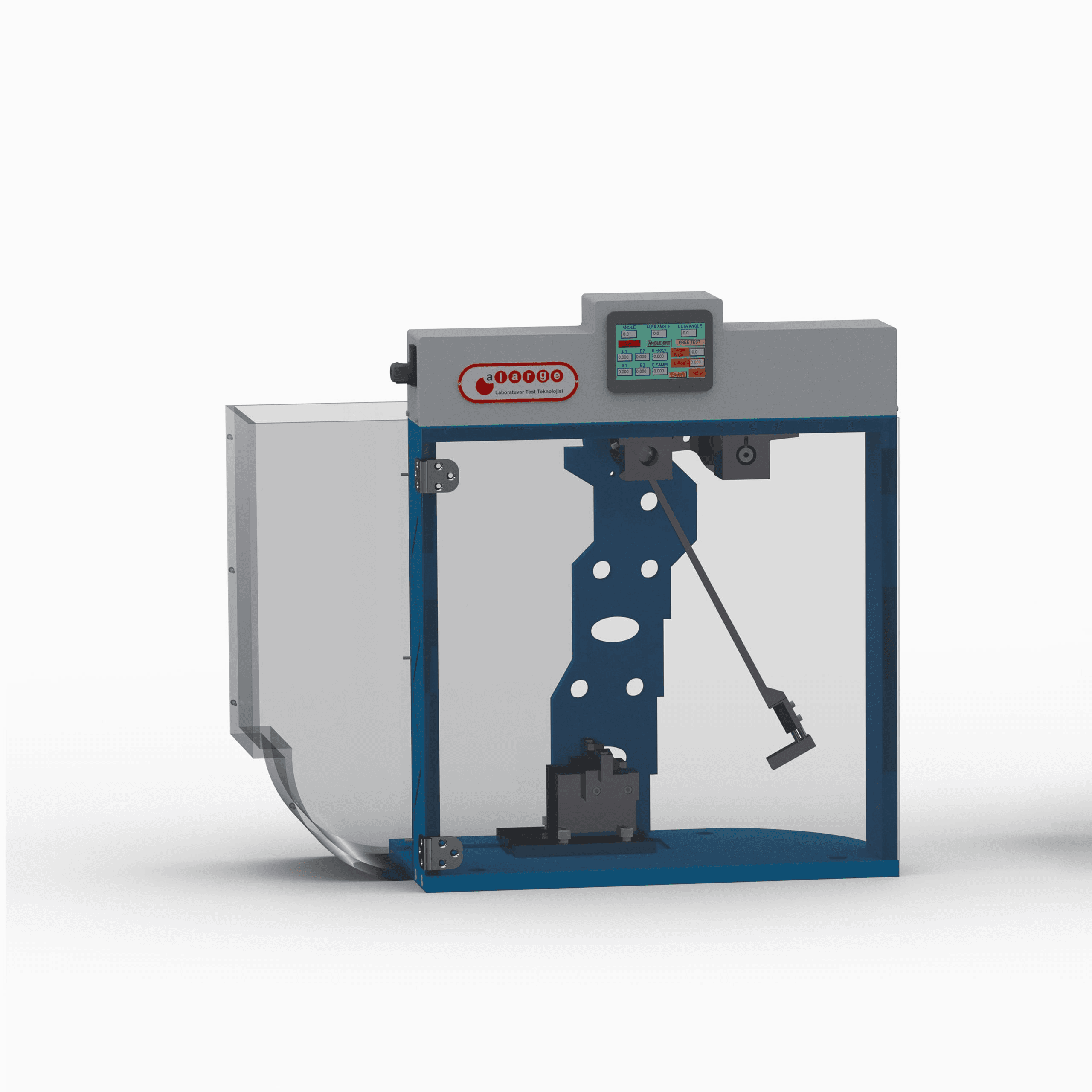

The impact test determines the breaking energy of plastics under dynamic load. There are two different test methods. Isod and Charpy test methods. The isod test specimen is placed vertically while the Charpy test specimen is placed horizontally.
Standards:
Precise and Efficient Solution
One device, the freedom of two different standards.

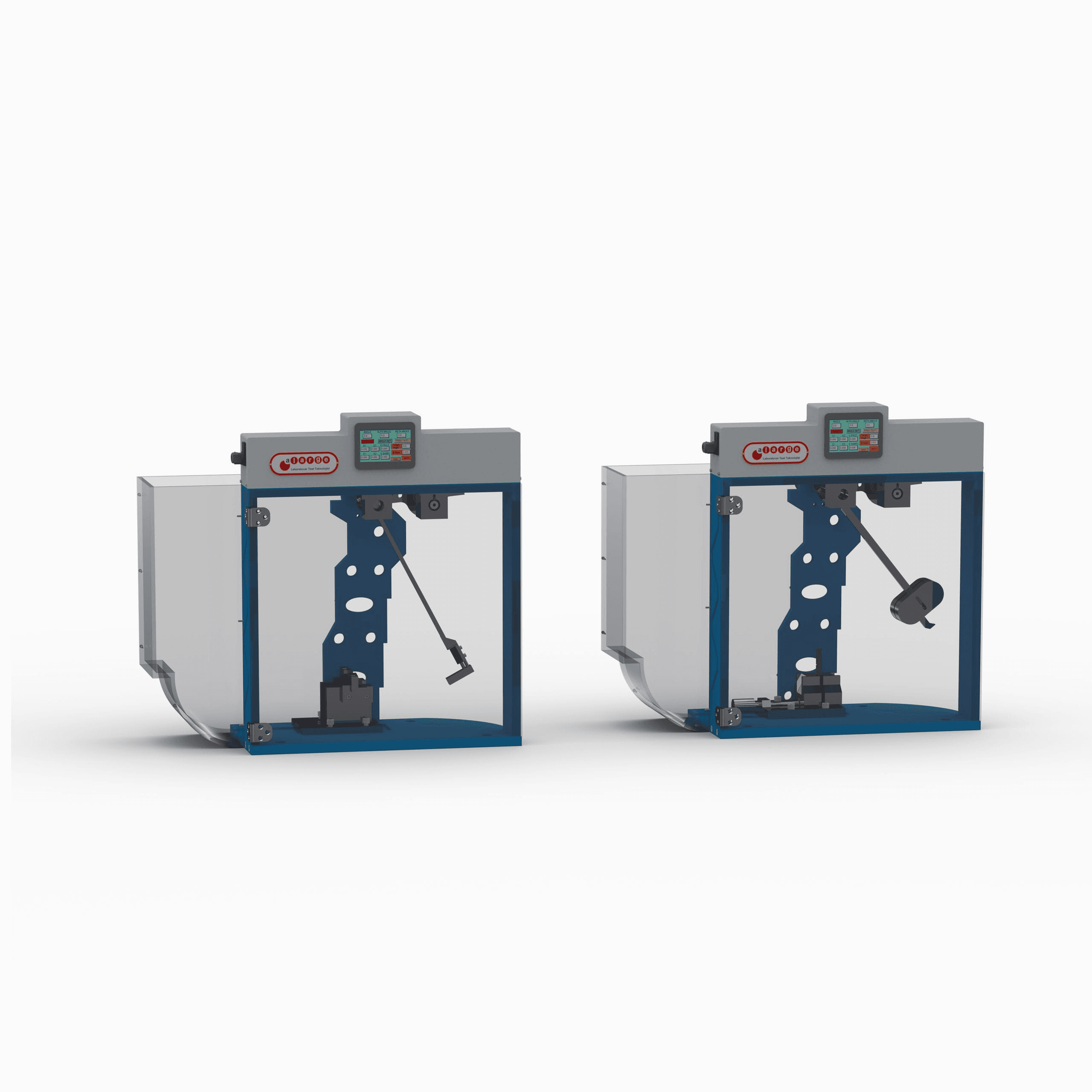

Charpy and Izod tests can be performed on a single platform with an interchangeable accessory system.
Laboratories thus achieve both space and investment savings.
Same accuracy in every test, zero deviation
A frictionless mechanical bearing system combines with a self-calibration algorithm.
This allows the device to establish its own balance in each test cycle, minimizing the deviation rate.
Result: Even as years go by, the same sample produces the same results — reliability becomes the standard.
Wide range of options.
Charpy and Izod test hammers offer the ability to conduct tests of up to 300 Joules with a wide range of options.
Efficiency is not only in testing but also in infrastructure.
The pneumatic brake system operates with low air pressure — reducing both compressor load and water consumption.
It creates less energy and maintenance burden on laboratory infrastructure.
Charpy | Izod | |||
| Model | ICJ 5 | ICJ 50 | ICJ 5 | ICJ 22 |
| Impact Type | 1 J | 5 J | 15 J | 20 J | 50 J | 1 J | 5 J | 15 J | 22 J |
| Pendulum Speed | 2.9 m/s | 3.5 m/s | 3.5 m/s | 3.5 m/s |
| Initial Angle | 90° | 126° | 126° | 126° |
| Arm Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Jaw Length | 40 mm | 40 mm | 40 mm | 40 mm |
| Impact Edge Radius | 2 mm | 2 mm | 2 mm | 2 mm |
| Impact Edge Angle | 16° | 16° | 16° | 16° |
| Pendulum Moment | PL(1J) = 0.5155 Nm PL(5J) = 2.578 Nm | PL(15J) = 7.733 Nm PL(25J) = 12.889 Nm PL(50J) = 25.777 Nm | PL(1J) = 0.5155 Nm PL(5J) = 2.578 Nm | PL(15J) = 7.733 Nm PL(22J) = 11.3419 Nm |
| Operating Conditions Temperature Range | 23℃ | 23℃ | 23℃ | 23℃ |
| Operating Conditions Humidity Range | 10%–80% | 10%–80% | 10%–80% | 10%–80% |
| Dust and Corrosive Gas | None | None | None | None |
The product is valid for 2 years starting from the delivery date.
For your technical support requests, simply contacting us is sufficient. Our expert team will strive to resolve your issue as quickly as possible through remote connection or phone support. If the problem cannot be resolved remotely, our technical team will be dispatched for on-site intervention. This ensures that your device is restored to working condition as swiftly as possible.
The installation and activation of the device you purchased are carried out in your working environment by our expert technical team. After the installation, comprehensive training is provided to your user personnel for the correct and efficient use of the device. This service ensures that you can use all the device’s functions safely and effectively.
To ensure the device operates efficiently and has a long lifespan, regular maintenance is essential. This includes tasks such as cleaning, checking connections, software updates, and calibration. It is recommended to perform maintenance at the intervals specified in the user manual. If desired, you can seek professional support from our technical service for maintenance tasks.
To ensure the device’s accuracy, calibration must be performed at regular intervals. Professional calibration is recommended every 6 months.
